Trail Marker Models
Up and Out
The Up and Out is our standard 6 x 6 x 12 cab... plus it goes up to give in interior height of ​6'4" and it goes out 4" on each side to allow the camper queen mattress to go sideways on a power bed lift. Weight can range roughly around 2000-2500lbs depending on the options you choose for your Trail Marker. There is the option for a special nose cone storage area with Road Shower which can also connect to a sink. Shore water can easily also be hooked up to this system. Depending on how you "build your trailer" using our build sheet it could have items such as a Coleman AC unit with optional electric heat, MAXX fan, Propex Propane Heater, Optional Stickwood interior, stainless counter, LED strip Lighting, IRONMAN awning on both sides, Optional IRONMAN Room as well which attaches to the awning. The Up And Out can be equipped with shore power with a converter charger, and we offer an optional 100Watt solar system with control panel. Other great additions are the Rotopax water system as well as the windows for the sides and rear. For cargo, the Up and Out can have L-Track aircraft strips on each side to make moving cargo a breeze.
​
Example of Up & Out Exterior Dimensions (with a 14.5" suspension lift on a Dexter Axle)
19'4" L from rear to front
8'6" W from tire to tire
8'6" H (with no rack or vent - 9' tall with vent)
​
Interior Dimensions:
HEIGHT:
WITHOUT BED LIFT - 6'2"H
WITH BED - 5'2"H
WIDTH:
6'7.5"
LENGTH:
WITHOUT CABINET - 11'6"
WITH CABINET - 9'10"L
​

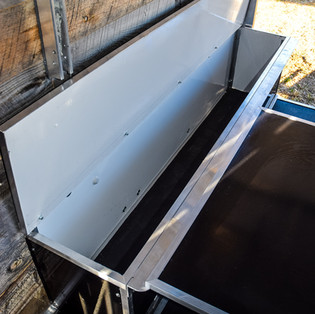

Up & Out Tongue Box Dimensions:
18"x40"x75"
Door Opening - 12"x75"
Interior Dems - 18"x 39"x 6'
​
Email Customer Service for more info.
​
